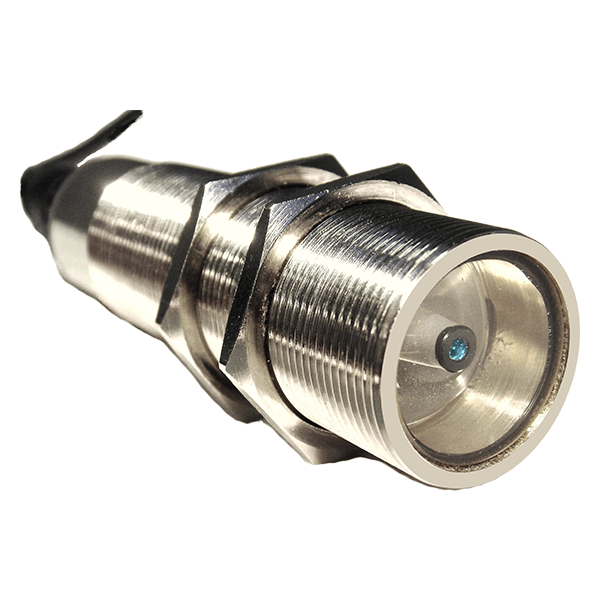

ColorMax Color Sensor
ColorMax Color Sensor
- Color and color + luminosity detection
- 20 kHz switching frequency
- High intensity white LED
- Up to 150mm operating range
- USB and RS232 interface
Price range: $680.99 through $1,841.99
ColorMax-1000 Color Sensors Overview
With our efficient color sensors, you can verify the presence of opaque targets that can be differentiated by color faster and with greater control. A ColorMax-1000™ color sensor lets your machine see up to 15 colors and RGB intensity. Innovative technology improves sensitivity and speed, so you can maximize the pace of your manufacturing and optimize your facility’s output.
Key Features of ColorMax-1000 Sensors
- Detects color and color + luminosity
- 20 kHz switching frequency
- High intensity white LED
- Up to 150mm operating range
- USB and RS232 interface
- Recognizes up to 15 colors, reducing need for multiple sensors
- Fast 20kHz sample speed for efficient operations
- PC-based configuration software with unauthorized change lockout
- White balance adjustment for RGB correction factors
- Graphic user interface for easy correction factor calculation
- M30 package, highest resolution and repeatability in industry
- 2 to 5 times faster sample speed
- Sophisticated algorithms ignore luster
- Analog output values for RGB readings, enabling tighter control
Quality Control
Traditional color sensors output only a “match/no match” condition, but the ColorMax-1000 provides analog output values for each RGB reading. Now, machines and operators can see which color is being analyzed and how much color is present, which in turn enables tighter control. Color Sensor Case Studies: Click Here!
Color Sensor Options
EMX Industries is proud to offer a variety of color sensing units within our ColorMax line. View our complete product specifications in the specs tab, including:
- Number of channels
- Discrete and analog outputs
- Available accessories
Consider Our ColorMax VIEW Translucent Color Sensors
If you’re in need of a color sensor for high-speed, on-line color verification of translucent materials, the ColorMax VIEW has been specially designed to meet that purpose.
Videos
ColorMax Color Sensor - Software Set-Up - Part 1 of 2
The ColorMax color sensor is supplied with a windows application program for quick and easy set-up. This is part 1 of a 2 part series.
ColorMax Color Sensor - Software Set-Up - Part 2 of 2
The ColorMax color sensor is supplied with a windows application program for quick and easy set-up. This is part 2 of a 2 part series.
ColorMax Sensor - White Balance Adjustment
Watch how the white balance adjustment feature ensures consistent RGB readings from multiple color sensors.
ColorMax-1000™ Color Sensor - Detecting Automotive Fabric Colors
Demonstration of the ColorMax-1000™ color sensor detecting and verifying a seat belt's color in automotive applications.
ColorMax - Color Sensor Programming
Teach color recognition channels with the ColorMax. Easy set-up with PC application program.
ColorMax-1000 Technical Specifications
| Model | Spot Size | Color Channels | RGB Analog Outputs | Serial Data Output | Operating Range | Discrete Outputs |
|---|---|---|---|---|---|---|
| CM1000-1-4 | 4mm | 1 | No | No | 30-50mm | PNP/NPN |
| CM1000-4-4 | 4mm | 4 | No | No | 30-50mm | PNP/NPN |
| CM1000-7-4 | 4mm | 7 | No | No | 30-50mm | PNP/NPN |
| CM1000-15HEX4 | 4mm | 15 | No | No | 30-50mm | PNP/NPN |
| CM1000-4RGB4 | 4mm | 4 | Yes | No | 30-50mm | PNP/NPN |
| CM1000-4FLEX4 | 4mm | 4 | Yes | Yes | 30-50mm | PNP/NPN |
| CM1000-1-8 | 8mm | 1 | No | No | 30-100mm | PNP/NPN |
| CM1000-4-8 | 8mm | 4 | No | No | 30-100mm | PNP/NPN |
| CM1000-7-8 | 8mm | 7 | No | No | 30-100mm | PNP/NPN |
| CM1000-15HEX8 | 8mm | 15 | No | No | 30-100mm | PNP/NPN |
| CM1000-4RGB8 | 8mm | 4 | Yes | No | 30-100mm | PNP/NPN |
| CM1000-4FLEX8 | 8mm | 4 | Yes | Yes | 30-100mm | PNP/NPN |
| CM1000-7-25 | 25mm | 7 | No | No | 30-150mm | PNP/NPN |
| CM1000-15HEX25 | 25mm | 15 | No | No | 30-150mm | PNP/NPN |
| CM1000-4RGB25 | 25mm | 4 | Yes | No | 30-150mm | PNP/NPN |
| CM1000-4FLEX25 | 25mm | 4 | Yes | Yes | 30-150mm | PNP/NPN |
Accessories
Documents
Spec Sheet
Manual
Support Documents
